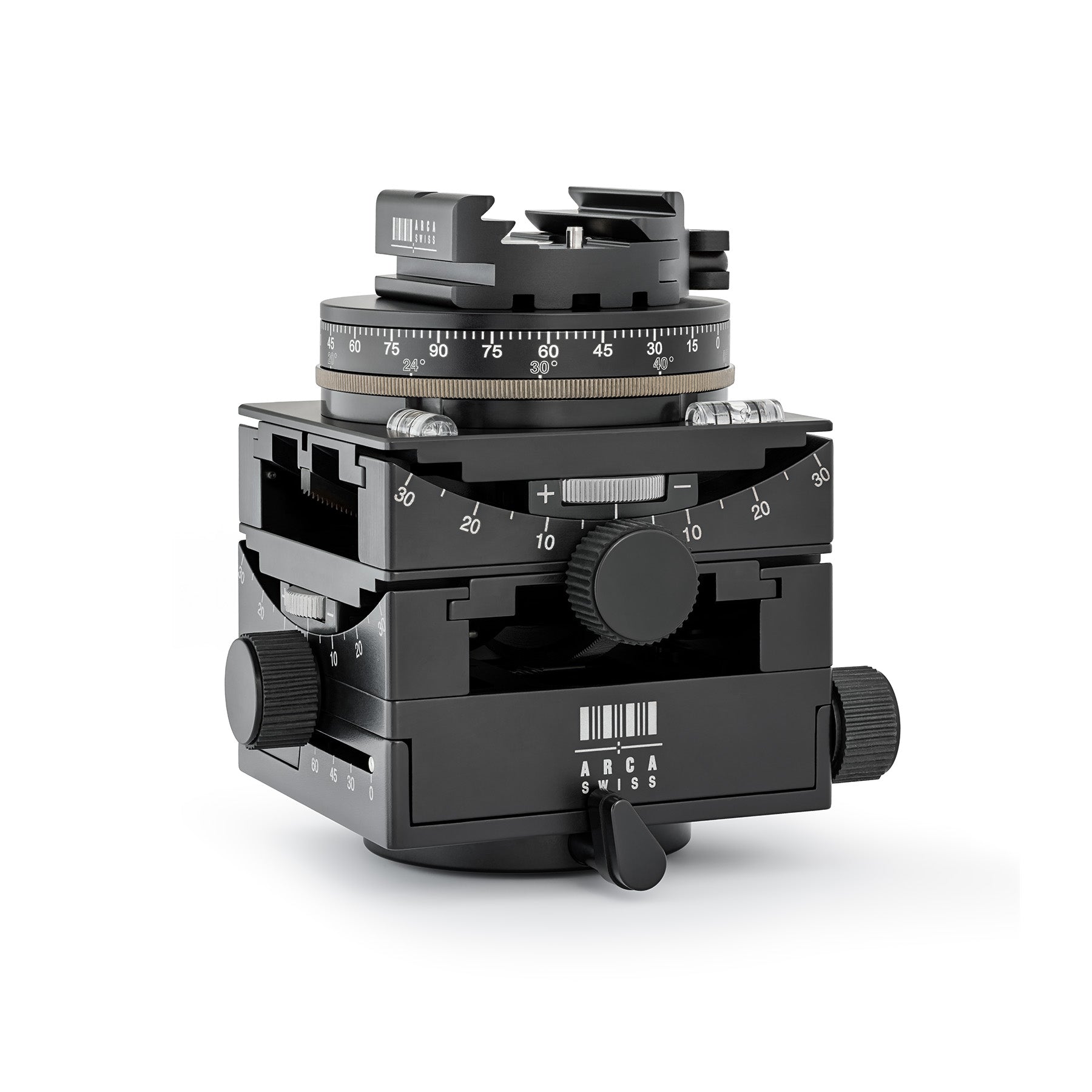

Photo of ARCA-SWISS C1 Cube cp geared tripod head with flipLock quick release, 3/4 front view photograph in zeroed position. Featuring gear-driven, self-locking micro-metric controls.
 SKU:8501500.1

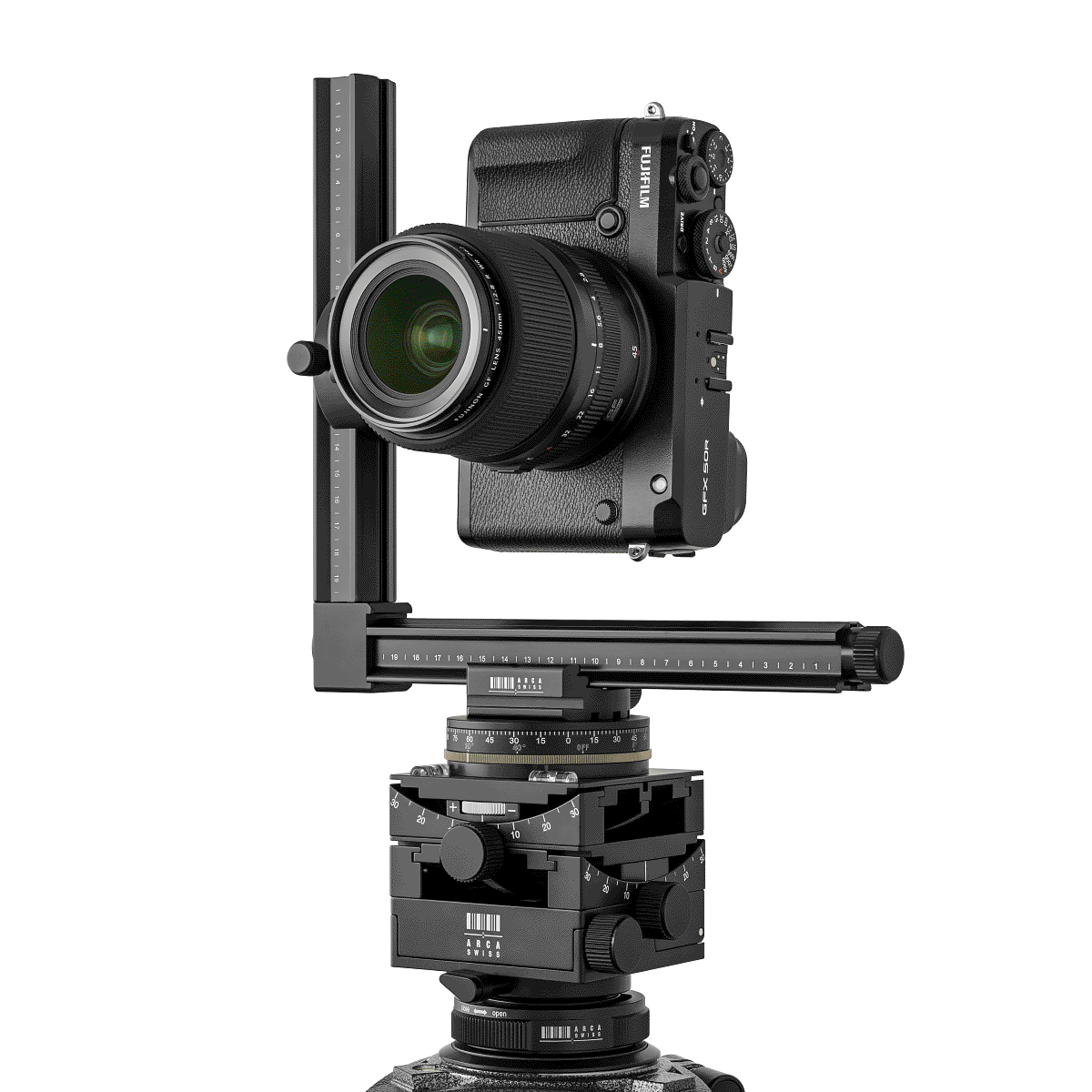

ARCA-SWISS C1 Cube cp geared tripod head with Classic quick release, motion gif with Pan System Pro and nodal rail. Featuring gear-driven, self-locking micro-metric controls.  SKU: 8501503.1

C1 Cube cp clicPan® geared tripod head

$1,779.00 Sale Save

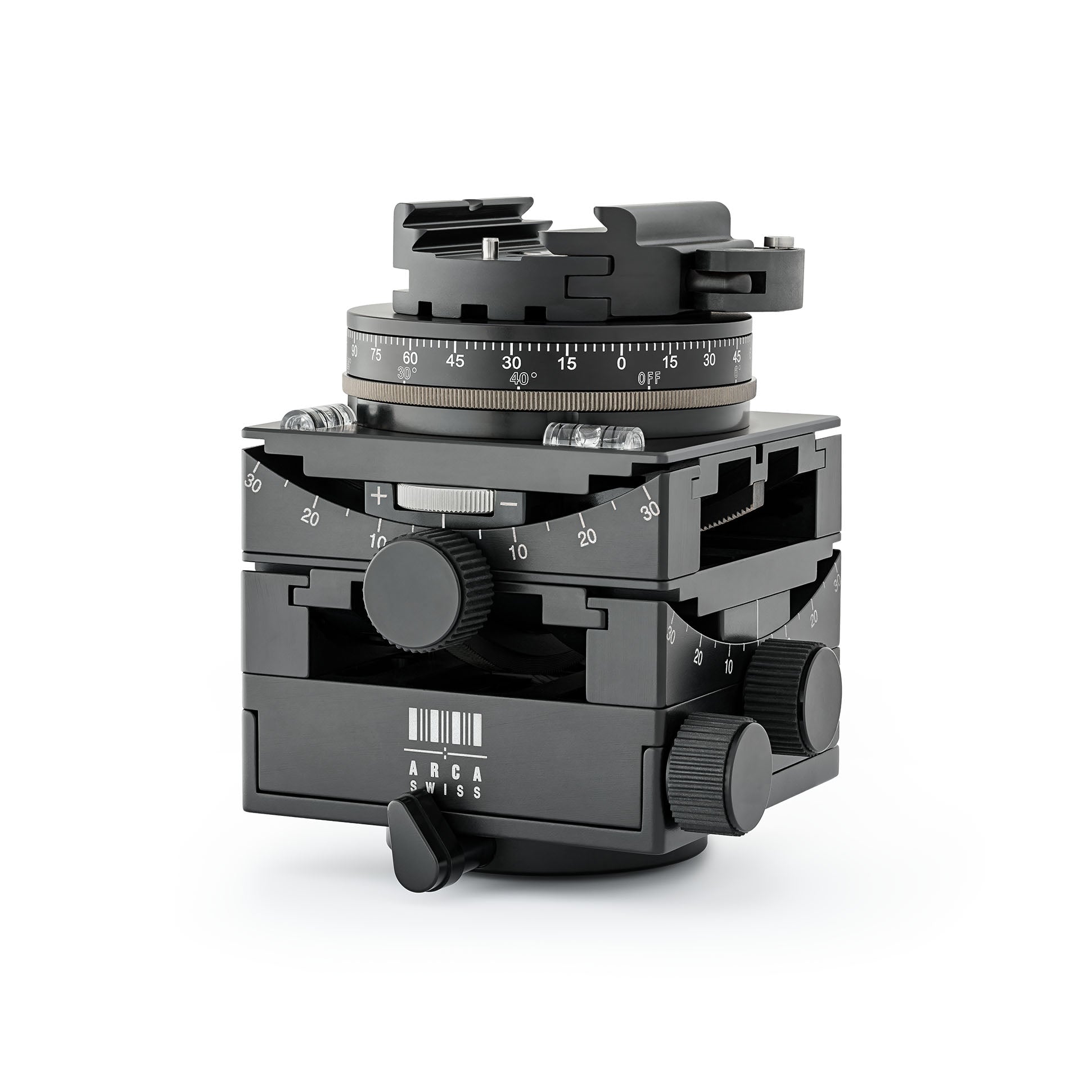

The C1 Cube cp clicPan head offers selectable panning intervals, free panning, versatile leveling capabilities, a wide range of motion, dual panning mechanisms, and secure locking strength for effortless panoramic captures.



  • C1 Cube geared tripod head with built-in panoramic interval rotator
  • Selectable panning interval options with audible and tactile "clic" stops
  • Panorama interval is quickly changed by rotating the clicpan adjustment ring to a selected setting
  • 10 detent settings - 40° (9 stops), 30° (12 stops), 24° (15 stops), 20° (18 stops) 15° (24 stops), 12° (30 stops), 10° (36 stops), 7.5° (48 stops), 6° (60 stops), and "OFF" for 360° free, unrestricted panning
  • Two manual panning mechanisms, provided at the base and top
  • Flexible and versatile C1 Cube is easily leveled in challenging locations, an asset for panoramic capture. Tripod legs won't need to be level when using the C1 Cube
  • Gear-driven, self-locking micro-metric controls
  • +30/-30° horizontal and vertical range of motion
  • 88 lb load capacity handles heavy loads on either side of the head
  • Two tension adjustment dials (+/-) provided for X and Y axes

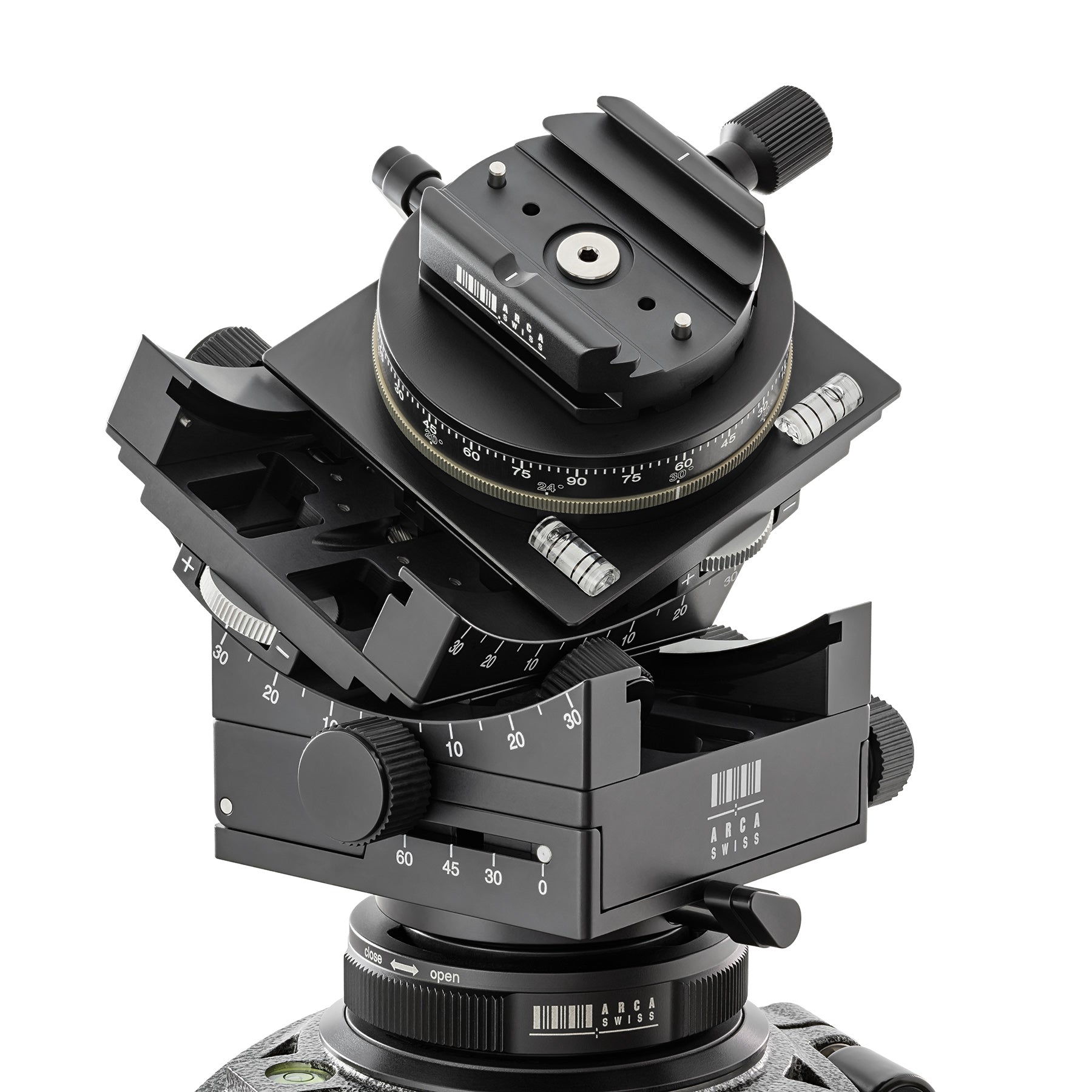

  • C1 Cube opens manually to 60° and moves beyond 90 ° with geared controls
  • Two tubular levels for the X and Y axes, easily viewed on the top platform
  • Secure locking to prevent potential tilting, panning, or settling
  • Choice of quick release - Classic, flipLock® or monoball®Fix

C1 Cube cp Classic
SKU: 8501503.1

C1 Cube cp flipLock®
SKU: 8501500.1

C1 Cube cp monoball®Fix
SKU: 8501505.1

Type: Geared tripod head
Weight: 2.6 lb / 1160 gr
Dimensions: 121 x 110 x 110 mm
Load Capacity: 88 lbs / 40 kg
Base Diameter: 60 mm
Base Mount: 3/8"-16 threaded socket
Panning at Base: Yes, 360° manual
Panning at Top: Yes, 360° manual
Horizontal Tilt: +/- 30°
Vertical Tilt: +60° manual + 30° geared, -30° geared
Levels: 2 tubular levels on top platform
Friction Control: Yes, in both X and Y axes
Compatible Camera Plates: Classic or monoball®Fix
Clic®Pan panoramic rotator: Detent options - 40° (9 stops), 30° (12 stops), 24° (15 stops), 20° (18 stops) 15° (24 stops), 12° (30 stops), 10° (36 stops), 7.5° (48 stops), 6° (60 stops), and OFF for 360° free panning
Feature: Self-locking, finely geared controls




CLICPAN DETENT INTERVALS
OFF
 =
360° free panning
40°
 =
9    stops
30°
 =
12  stops
24°
 =
15  stops
20°
 =
18  stops
15°
 =
24  stops
12°
 =
30  stops
10°
 =
36  stops
7.5°
=
48  stops
6°   = 60  stops

QUICK RELEASE Classic
