Camera Bellows System

ARCA-SWISS view camera bellows for F-Line and M-line view cameras

Information for material, extension and focal range is provided in the table below.

View Bellows Collection

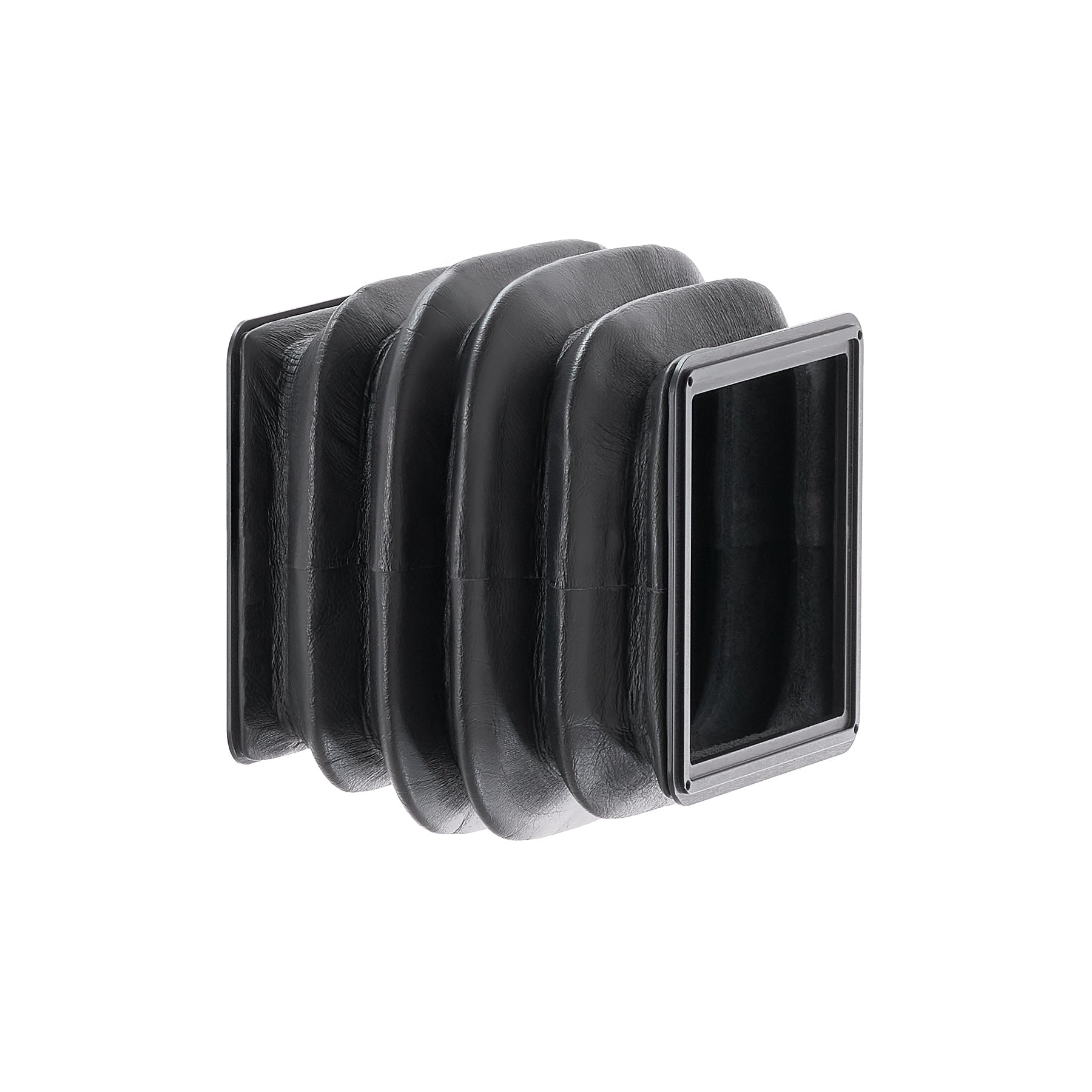

Photo of ARCA-SWISS Bellows 6x9, wide-angle, Leather. Wide-angle bellows for 6x9 format view cameras. Length 15 cm. From ARCA-SWISS USA. SKU: 071010

DSLR
Extension Lens Range Bellows Material Model
10 cm 23-90 mm wide-angle synthetic bag for dslr 071013
20 cm 100-180 mm normal leather for dslr 071000.5
25 cm 150-210 mm normal synthetic for dslr 071002
50 cm 180-450 mm long synthetic for dslr 071026
6x9
Extension Lens Range Bellows Material Model
6 cm 23-50 mm ultra-wide leather bag 071011
15 cm 55-110 mm wide-angle leather 071010
20 cm 55-150 mm universal leather 071000
25 cm 135-210 mm normal synthetic 071001
50 cm 180-450 mm long synthetic 071025
4x5 field
Extension Lens Range Bellows Material Model
6 cm 47-55 mm ultra-wide leather bag 071037
30 cm 75-270 mm universal leather, conical 071035
60 cm 180-480 mm long synthetic, conical 071033
4x5 141 series
Extension Lens Range Bellows Material Model
20 cm 47-150 mm wide-angle leather bag 072053
40 cm 150-360 mm normal synthetic 072041
70 cm 180-600 mm long synthetic 072062
4x5 171 series for 171 standard and long bellows - call for availability and price
Extension Lens Range Bellows Material Model
20 cm 55-150 mm wide-angle synthetic bag 72050
5x7 141 series
Extension Lens Range Bellows Material Model
20 cm 72-150 mm wide-angle leather bag 075014
50 cm 180-420 mm normal synthetic, bi-conical 075012
70 cm 210-600 mm long synthetic, bi-conical 075013
8x10 141 series
Extension Lens Range Bellows Material Model
30 cm 120-210 mm wide-angle leather bag 076014
50 cm 210-450 mm normal synthetic, bi-conical 076012
70 cm 240-600 mm long synthetic, bi-conical 076013
